Line for producing “Plastering angle” profile

Roll forming machine Mobiprof YP-23x23.1xR1.05 is designed to produce of “Plastering angle” profile used for plastering of surfaces. Workpiece must be pre-perforated, with a certain width and pre-catted of required length or coiled into roll (strip). Non-perforated band is shown in the video.

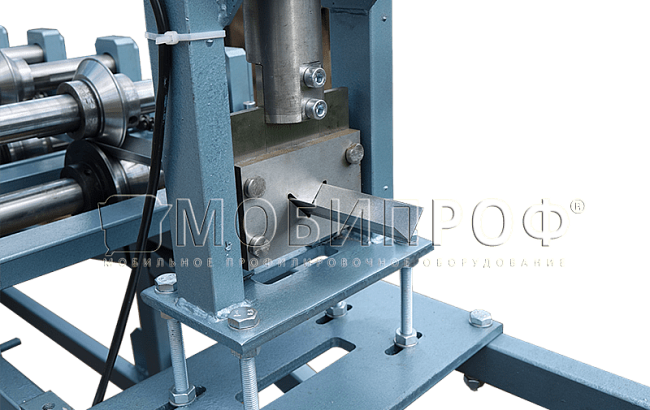

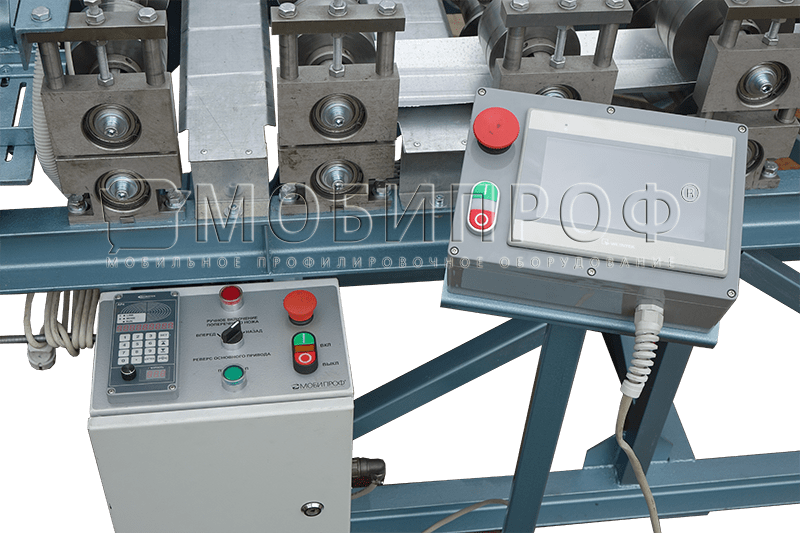

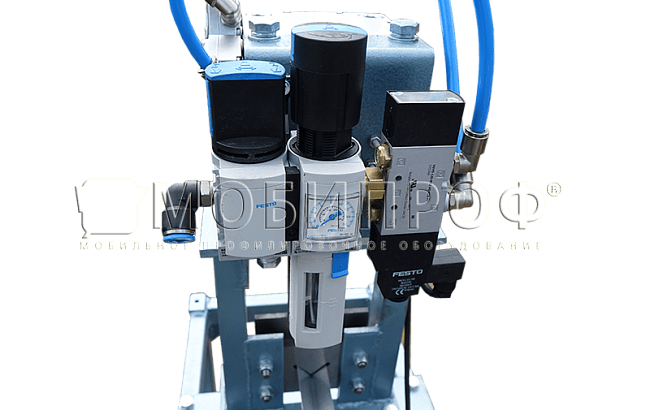

The machine is additionally equipped with numeric control system (NC) which is used for entry of a production program (length and quantity of items) and profile pneumatic guillotine (stationary cut) for cutting profile at the end of the machine. The profile length accuracy  is ±1 mm in repetition over 4m.

The calibration mill stand allows performing a quick fine-adjustment for necessary thickness and metal type.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

To get a quotation of the equipment you should write us by e-mail: info@mobiprof.ru or call us.

A custom build roll forming machine based on the customer’s drawings can be manufactured.

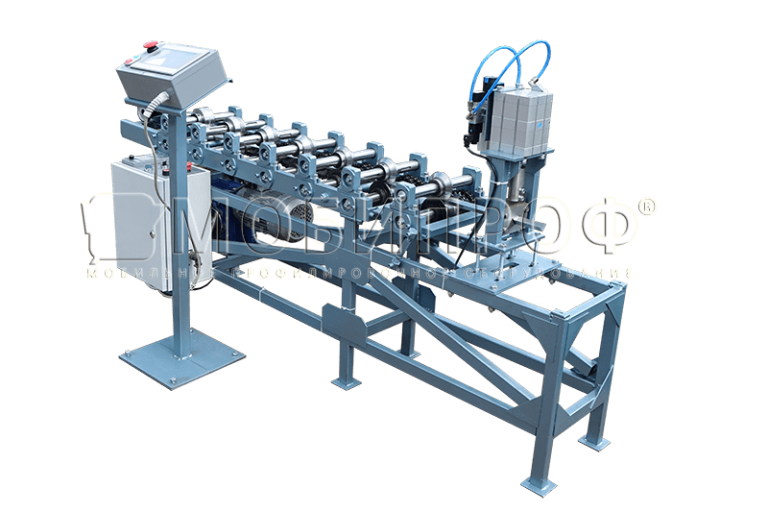

* On the photo, the machine shown with optional equipment.

• the jointly machined supports ensure high stiffness, ideal parallelism and shaft alignment;

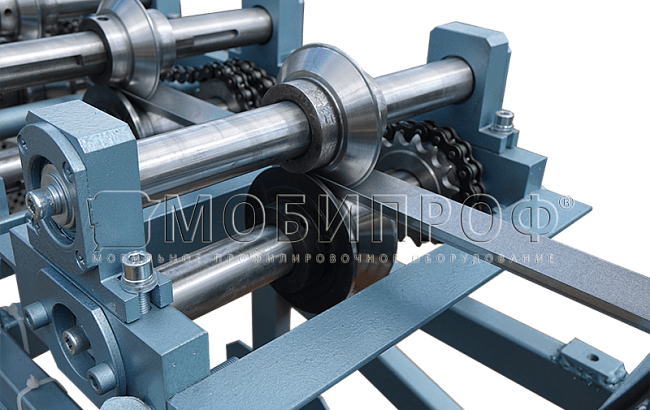

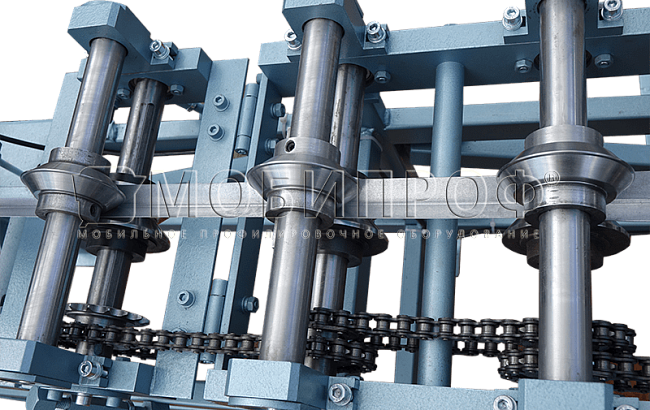

• the optimized configuration of forming rolls for high-quality rolling of all metal types;
• heavy-duty maintenance-free bearing assemblies;
• high quality products;
• unlimited length of produced shapes;
• high productivity;
• compact dimensions;
• the simple and durable construction;
• strong welded frame;
• used either as a separate unit or as a part of automated line;
• no need in supervised installation and start-up and adjustment works;
• affordable price, 12-month warranty and lifetime service support by the manufacturer.
