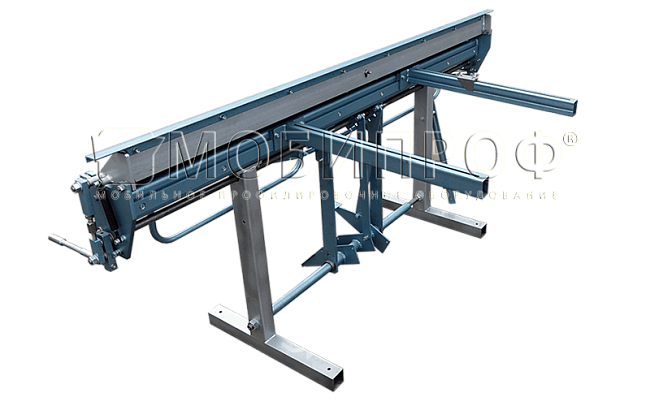

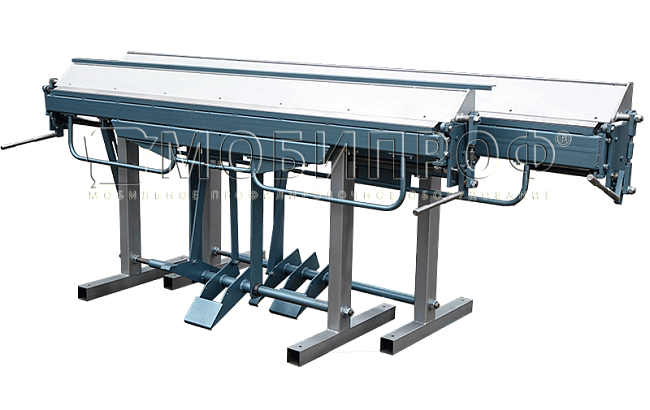

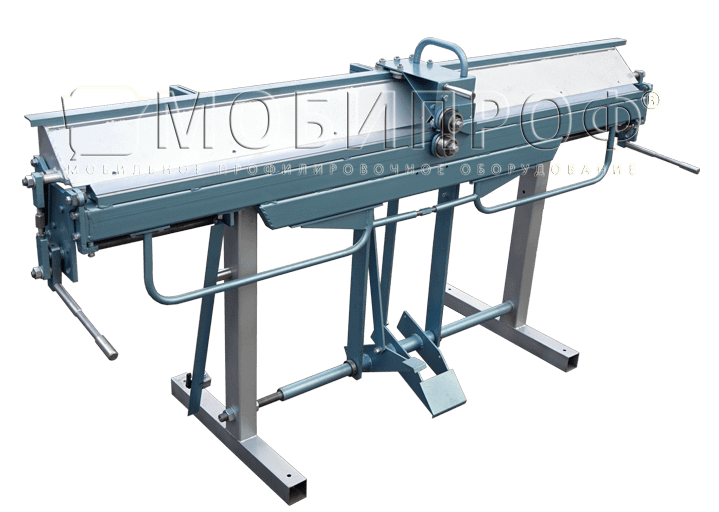

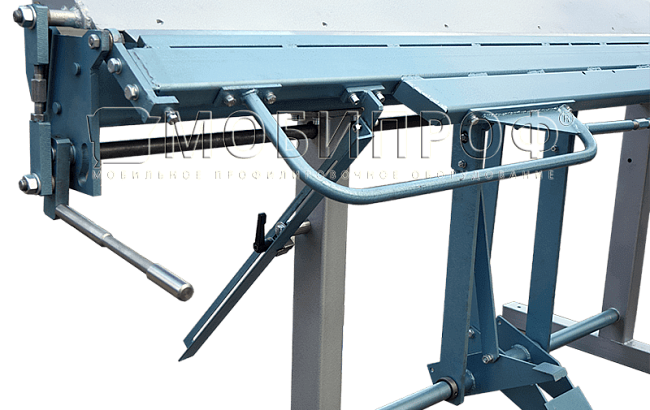

Folding machine LTB-2000/0,8

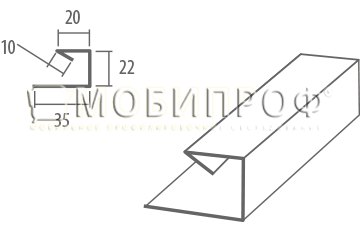

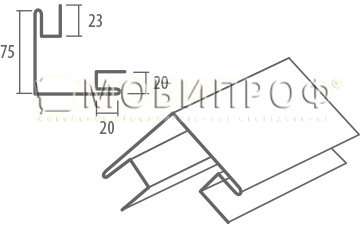

Folding machine LTB-2000/0,8 is to produce the whole range of products for building roof and faces made of up to 0.8 mm steel. As the sheet bender is reasonable in internal structure, it allows guaranteed bending of up to 0.8 mm thick metal and finish bending up to 0.6 mm thick steel by 180 degrees, maintaining consistent geometry of the shape over its whole length. 14 mm narrow folding beam allows producing a wide range of complex products with minimum reverse bending of different configuration.

For sale only in Russia!

• the rigid structure guarantees the ideal 0.8 mm thick steel blank bending on machines of various length (as the sheet bender working length increases, its rigidity is provided by increase of specific quantity of metal);
• “soft mechanics”, coordinated operation of all assemblies ensuring smooth force transfer increase the operator productivity;

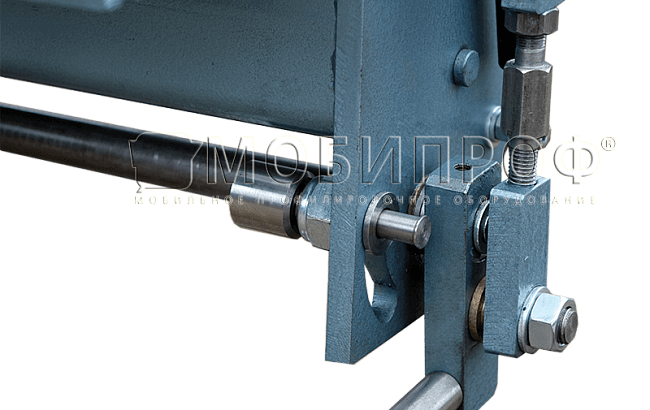

• the clamping and folding beams deflection compensation system allows carrying out fine tuning of the machine for assurance of consistency of the set bending parameters (angle and radius) over the whole length of the product on any used material for different thicknesses;

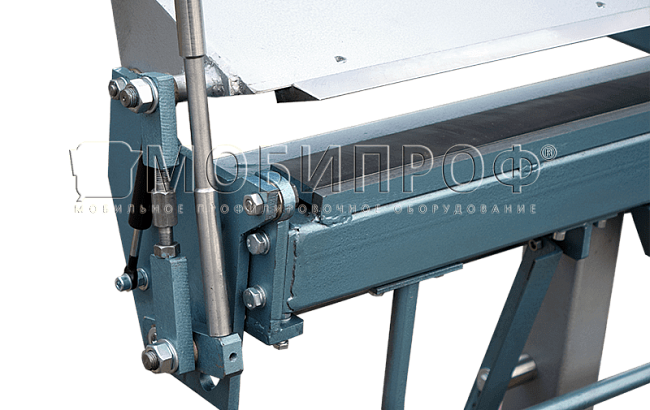

• the folding beam vertical position adjustment allows carrying out high-quality bending and provide bending radius adjustment for different thicknesses and blank materials;

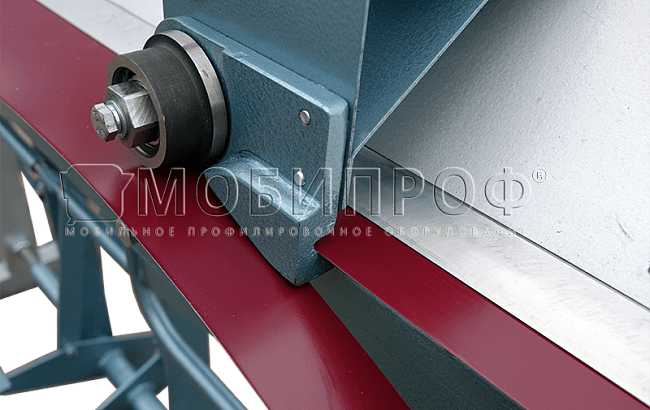

• repairable quick-change of clamp with 25 degree angle ensure the maximum initial bending of 155°;
• full-passage structure (without limitation of feeding depth) expands the sheet bender application range significantly allowing bending of large-size items (guard railings, etc.), cutting metal from the roll, manufacturing air ducts, etc.;

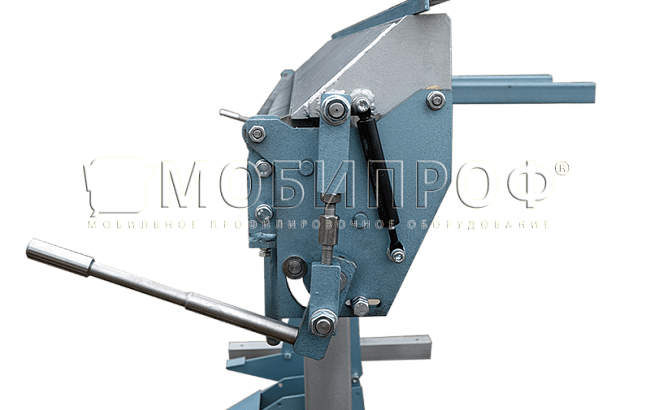

• eccentric mechanism of the calm performs quick and reliable clamping of the blank over its whole length;
• quick adjustment of the clamp opening;
• fas spring.
