Standing seam machine SFPR

Upper shaft with eccentric

For the adjustment of the gaps for a needed metal thickness

Screw-nut

For synchronised motion of profiling units to the required width

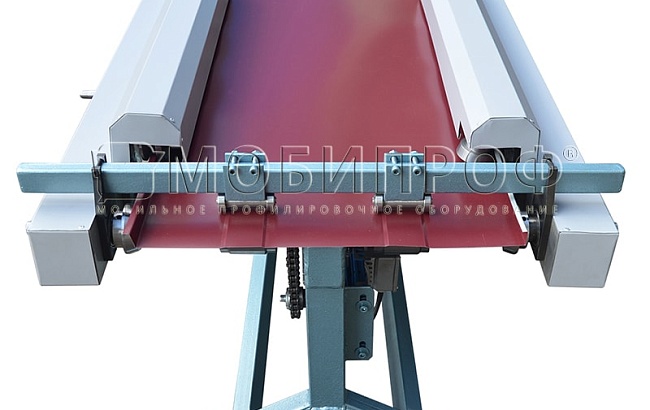

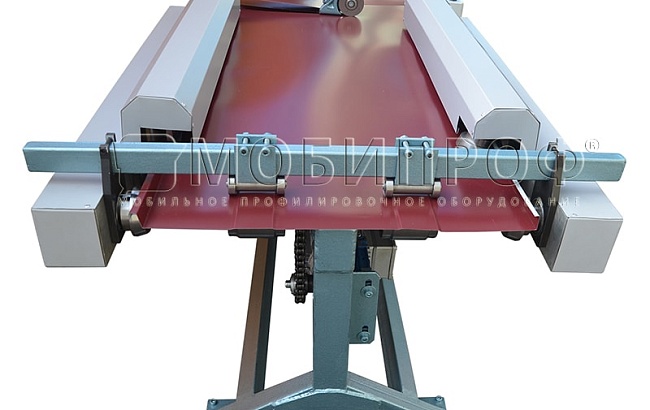

Support rollers

Rollers to support the center of the rolled panel.

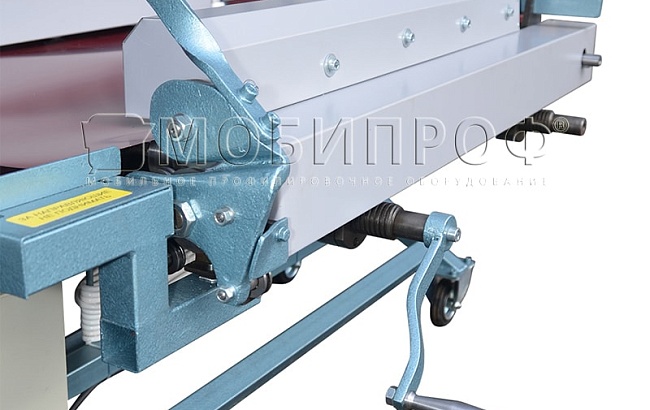

The handwheel

For quick readjustment for any blank width.

Price on request

array(0) {
}

Description

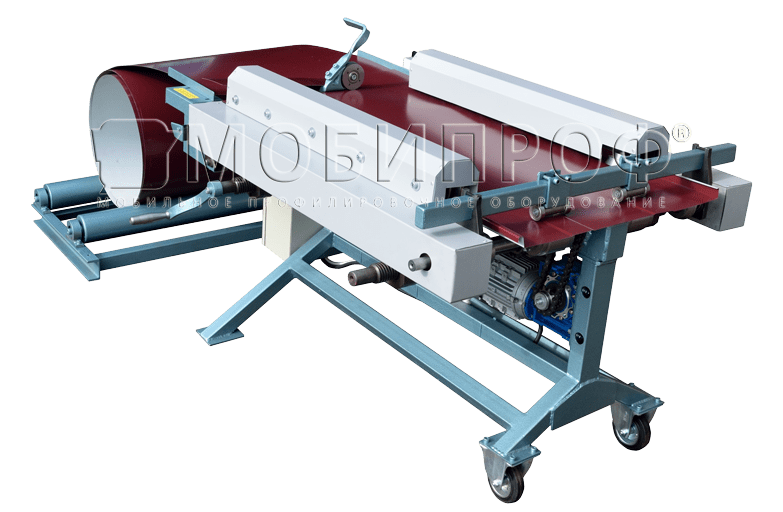

Roll forming machine SFPR manufactured by MOBIPROF allows to produce high quality roof panels with double or single standing seam of various widths and lengths from coil steel, on a job site as well as at a manufacturing facility.

The major feature of the machine is stepless width adjustment from 320 mm to 700 mm conveniently via handwheel. When the handwheel is rotated using two screw pairs, the movable carriers with shaping rollers move synchronically.

The machine operates with all roofing metal types: coiled and sheet steel, (galvanized steel, steel coated with copper, zinc-titanium, etc.).

Six profiling mill stands with optimized configuration of shaping rollers combined with the last straightening mill stand ensures high quality of the produced roofing panels.

During operation on a construction site, standing seam roll forming machine SFP-700 manufactures items for two teams simultaneously. To facilitate transportation and handling on site, the profiling unit can be easily removed from the frame. To ensure the roofing worker’s safety and protect the shaping mechanism, the machine is equipped with a protective cover.

In order to buy SFPR you need to leave a request on the website or call.

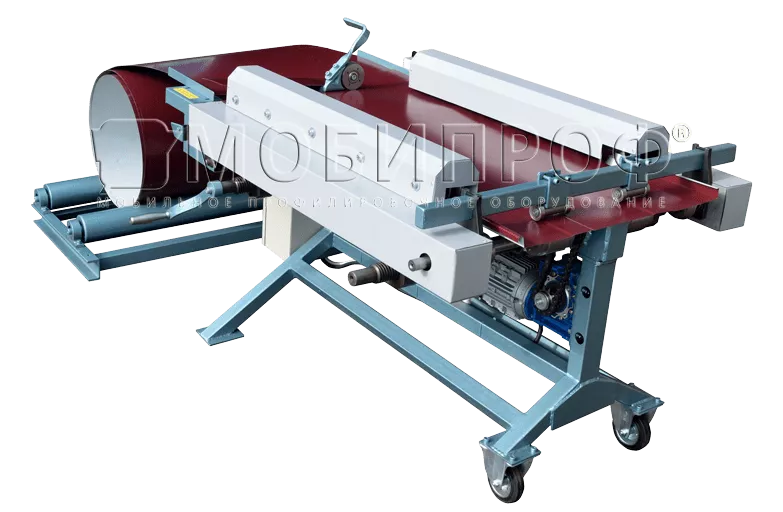

* On the photo, the machine is shown with additional equipment.

Advantages

easy and quick readjustment for any width within 320-700 mm by handwheel rotation;
high quality of produced roof panels due to the use of optimized 6-stand design;
availability of gaging rollers guarantees ideal quality of metal rolling with a wide range of thicknesses and stiffness;
application of complex composite rollers completely precluding any damage of polymer coating of metal;
to support the center of the panel being rolled, the shaping mechanism is equipped with a guide;
it manufactures roofing panels of straight and trapezoidal form, and with a single-sided seam;
possibility of installing additional rollers for rolling of half round or trapezoidal ribs;
movable guides allow adjusting the seam size if required;
SFPR is suitable for use on a job site as well as at a manufacturing facility;

Specifications

Infeed width, mm	320-700
Soft steel thickness S235JR, mm	0,45-0,7
Lock height, mm	25
Operating speed, m/min	7
Drive power, kW	0,75
Supply voltage, V	380/3-Ph
Dimensions, LхWхH, mm	1450х960х750
Weight, kg	150
